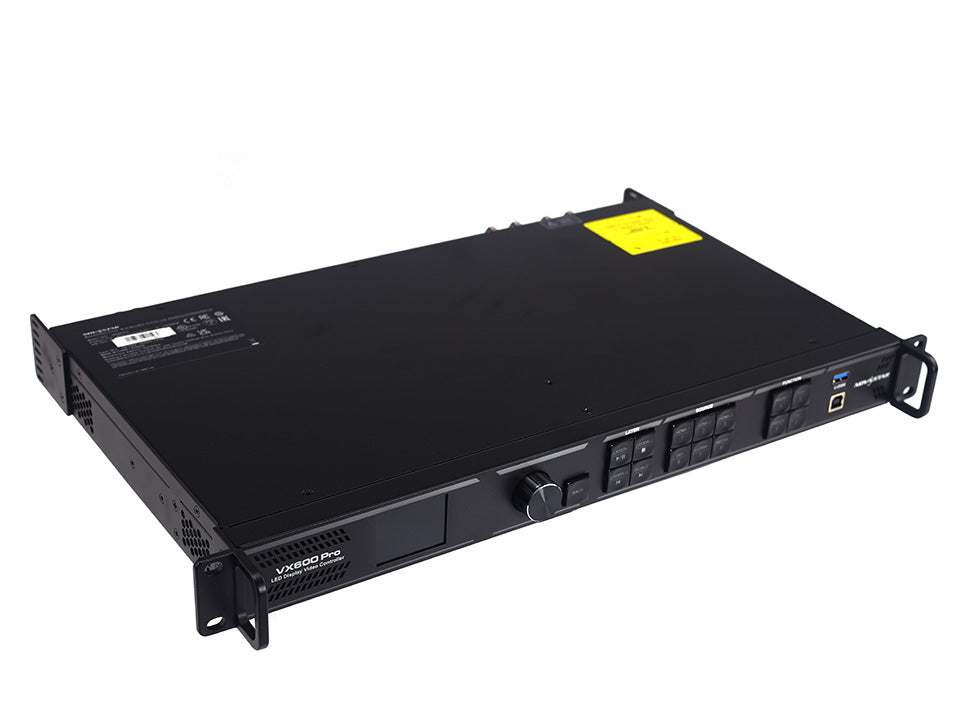

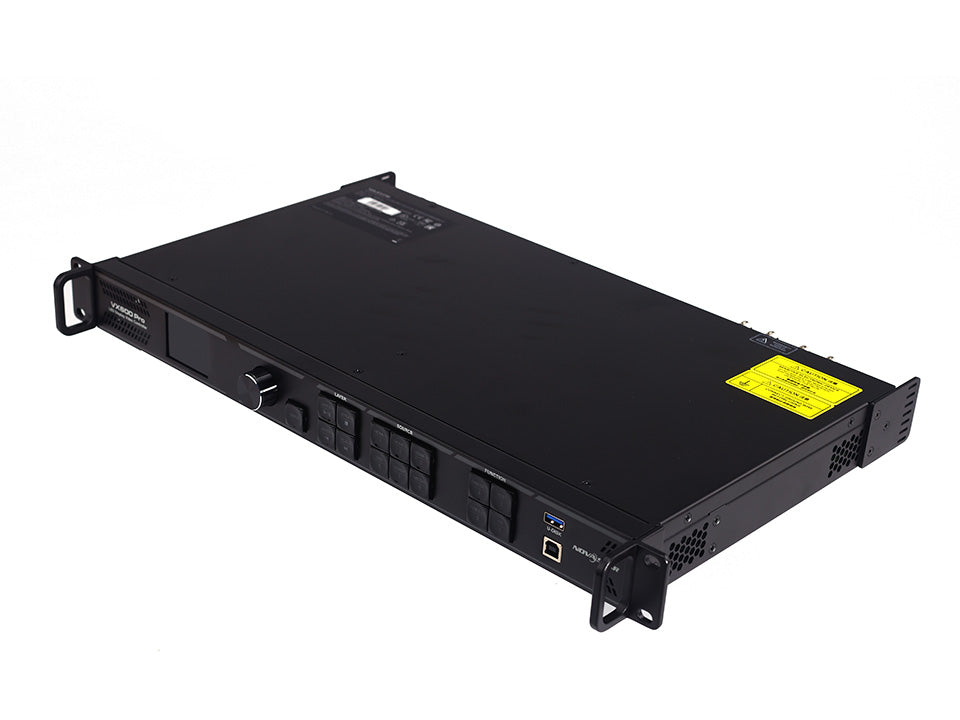

NovaStar VX600 Pro all-in-one LED controller for Australian commercial displays, staging and installation work. It combines professional video processing and LED control with six Gigabit Ethernet outputs and a loading capacity of up to 3.9 million pixels.
VX600 Pro key features
- Video controller, fibre converter and ByPass modes in one unit
- Up to 3.9 million pixels with maximum output dimensions of 10,240 pixels wide or 8,192 pixels high
- Video input up to 4096 × 2160 at 60 Hz through HDMI 2.0
- Six 2K × 1K layer resources with flexible scaling and positioning
- Six Gigabit Ethernet LED outputs and two 10G optical ports
- Up to 256 user-defined presets for fast setup changes
- Front-panel, NovaLCT, Unico and VICP app control options
Inputs and outputs

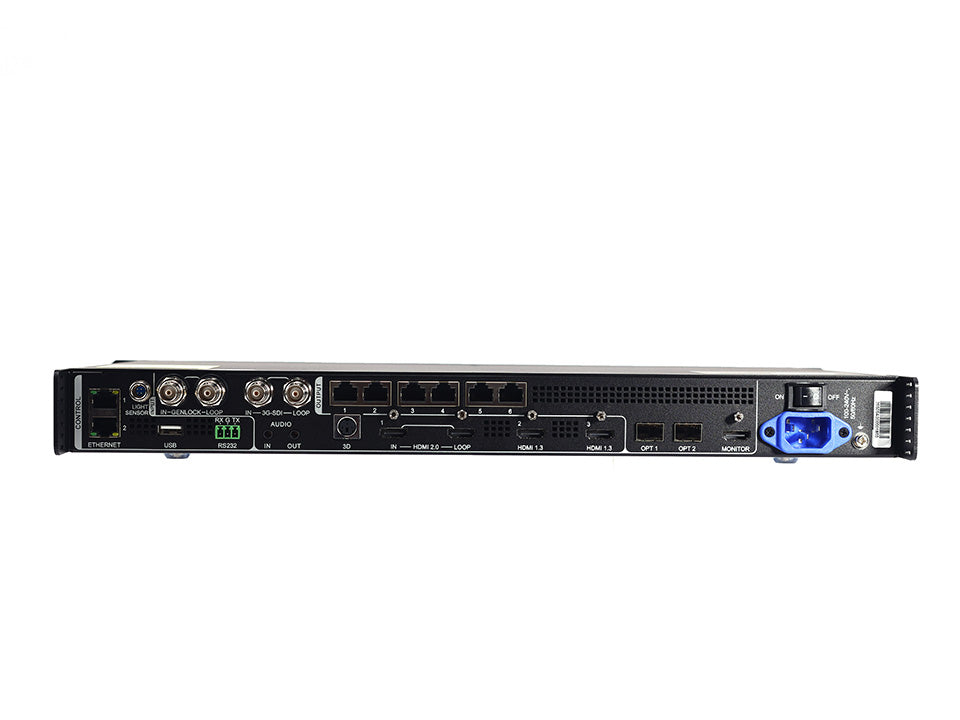

Inputs: 1 × HDMI 2.0 with loop, 2 × HDMI 1.3, 1 × 3G-SDI with loop, 1 × self-adaptive 10G optical port and 1 × USB 3.0 media input.
Outputs: 6 × Gigabit Ethernet ports, 2 × 10G optical ports and 1 × HDMI 1.3 monitoring output. Optical modules are selected separately to suit the required fibre type and transmission distance.
Where the VX600 Pro fits
The VX600 Pro is a strong choice for medium-format LED walls, live production, rental and staging, venues, control rooms and fine-pitch installations that need 4K input, multiple layers and more output capacity than the VX400 Pro.
Compatibility and Australian support
Confirm the total pixel count, receiving-card system, cabinet topology, source formats and fibre requirements before ordering. MR LED Screens can assist with processor selection, configuration and replacement planning for Australian projects.
