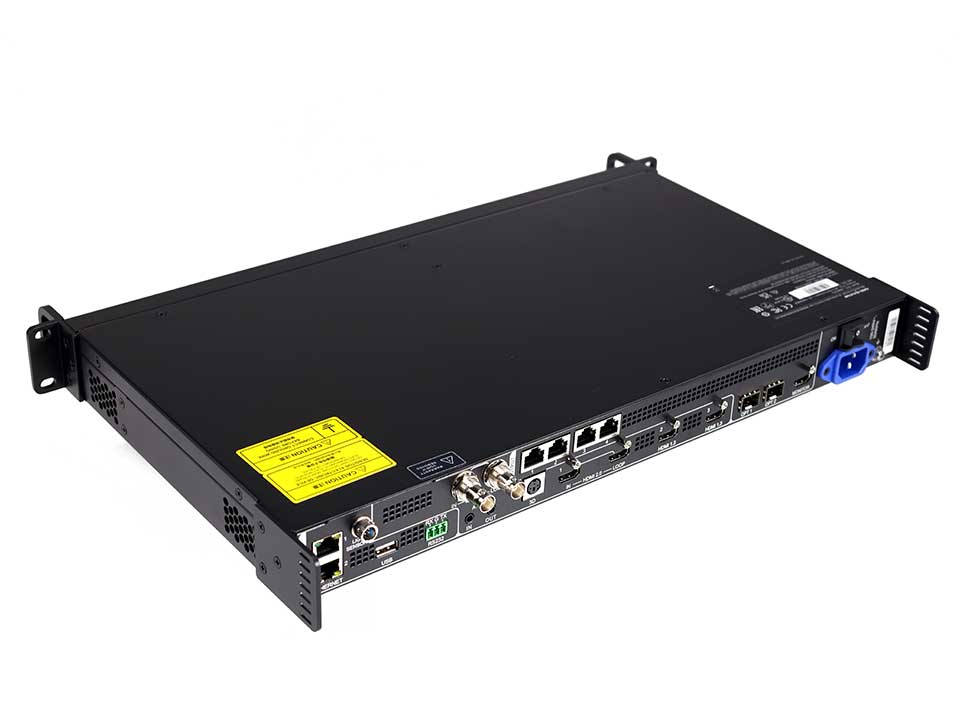

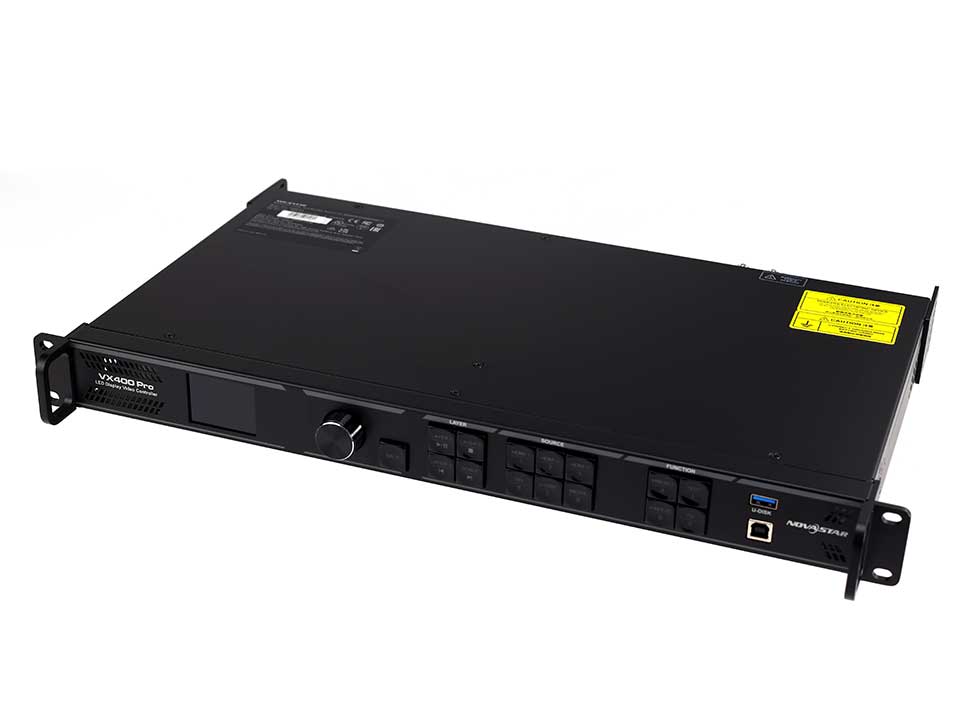

Novastar VX400 Pro LED Processor
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
NovaStar VX400 Pro all-in-one LED controller for Australian LED display installations, events and service work. It combines video processing and LED screen control in one industrial unit, with four Gigabit Ethernet outputs and a loading capacity of up to 2.6 million pixels.
Why choose the VX400 Pro?
- All-in-one video controller, fibre converter and ByPass operating modes
- Up to 2.6 million pixels, with maximum output dimensions of 10,240 pixels wide or 8,192 pixels high
- Supports video input up to 4096 × 2160 at 60 Hz through HDMI 2.0
- Six 2K × 1K layer resources with flexible scaling and positioning
- Four Gigabit Ethernet LED outputs plus two 10G optical ports
- Up to 256 user-defined presets for repeatable configurations
- Control from the front panel, NovaLCT, Unico or the VICP app
Inputs and outputs

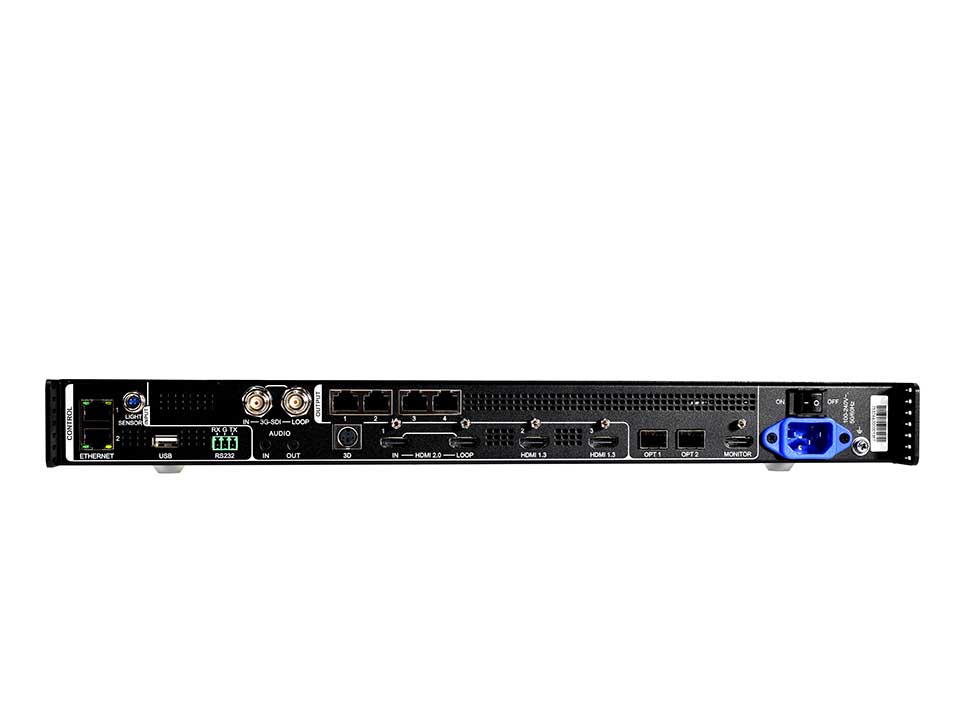

Inputs: 1 × HDMI 2.0 with loop, 2 × HDMI 1.3, 1 × 3G-SDI with loop, 1 × self-adaptive 10G optical port and 1 × USB 3.0 media input.
Outputs: 4 × Gigabit Ethernet ports, 2 × 10G optical ports and 1 × HDMI 1.3 monitoring output. The optical module is not factory-installed and should be selected separately for the required transmission type and distance.
Common applications
The VX400 Pro suits compact and mid-sized commercial LED screens, rental and staging systems, control rooms, events and fine-pitch installations where 4K input, multiple layers and flexible output mapping are required.
Compatibility and ordering
Before ordering, confirm the total pixel count, cabinet topology, receiving-card system, input formats and required output connections. MR LED Screens can assist Australian customers with processor selection, configuration and replacement planning.
Official NovaStar downloads
Compare more LED video processors and NovaStar controllers or contact MR LED Screens for compatibility assistance.
