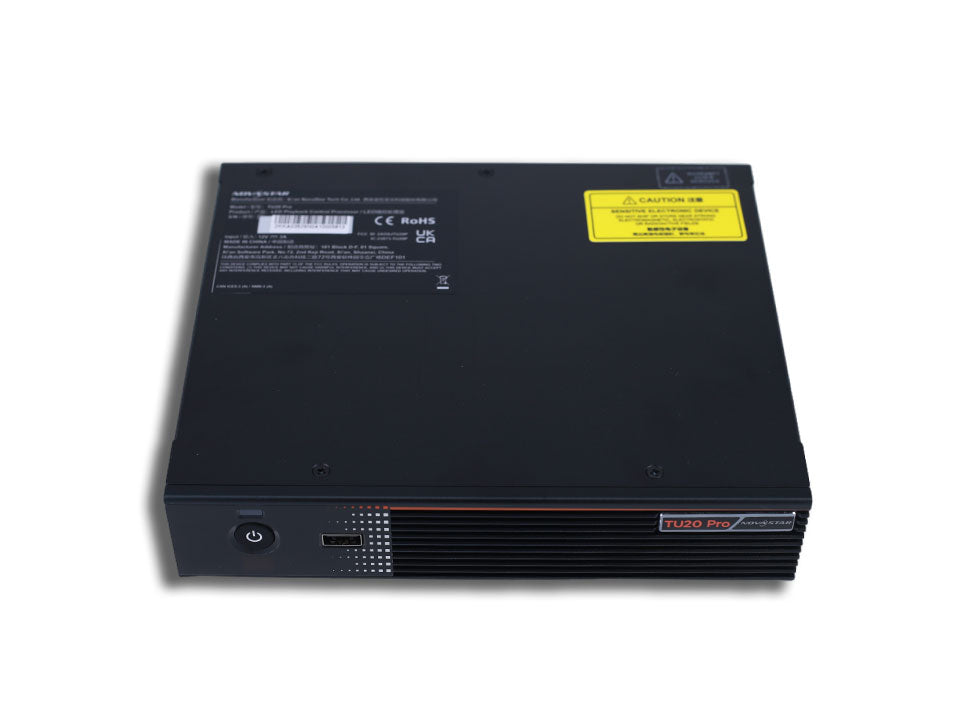

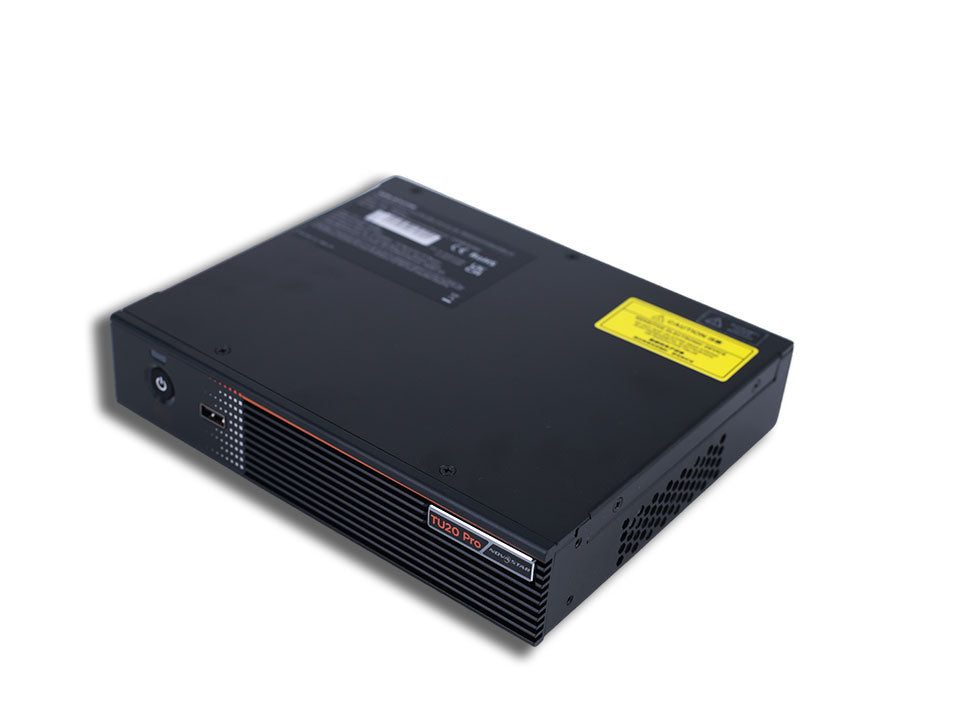

Novastar TU20 Pro LED Playback Processor

Novastar TU20 Pro Async Controller card with max
Width range: 800 to 4096 pixels
Height range: 600 to 1920 pixels
Total device load capacity ≤ 2.6 million pixels

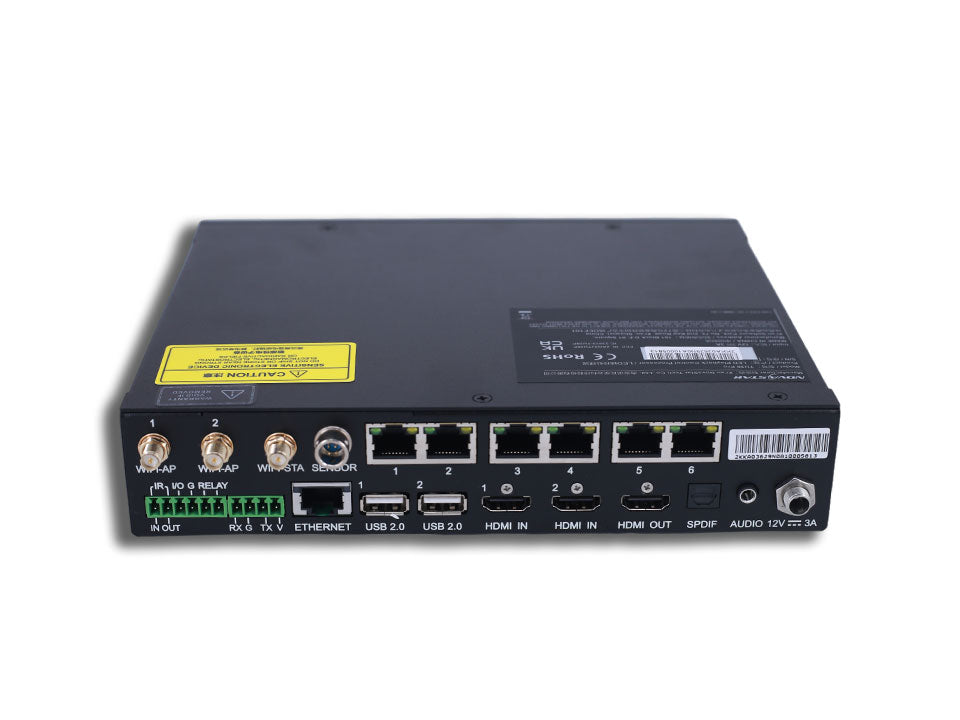

Inputs and Outputs
2x HDMI 1.3 inputs
3x USB 2.0 inputs for multimedia playback and function extension
6x Ethernet outputs, capacity up to 3.9 million pixels
2x audio outputs
− 1x SPDIF digital audio output
− 1x 3.5-mm audio output
Output image scaling
− Width range: 800 to 4096 pixels
− Height range: 600 to 1920 pixels
− Total device load capacity ≤ 3.9 million pixels

Output
1–6 6x RJ45 (1Gps)
In pixel-to-pixel output mode: load capacity up to 2.6 million pixels
When scaling function enabled: load capacity up to 3.9 million pixels (max width:
4096 pixels; max height: 1920 pixels)
HDMI OUT Support output of standard 1080p videos only.
AUDIO 3.5-mm audio connector
SPDIF For digital fiber optic audio output

Specifications
Input voltage: DC 12V 3A
Rated power consumption: 21W
RAM: 4 GB
Internal storage: 32 GB
Net weight:1.12 kg
Dimensions: 211.7 mm*185.0 mm*50.6 mm
