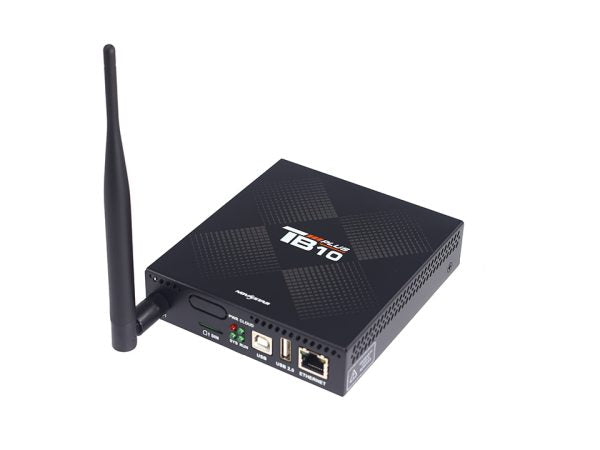

Novastar TB10 Plus Multimedia player

(0)
Only 5 left
Low inventory - Hurry up!
$0.00

Ready to install and hit the road!

Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

TB10 Plus Specifications

Processor & Memory

  • Quad-core ARM A53 @ 1.4GHz
  • 2GB RAM + 32GB internal storage
  • Supports USB storage expansion (up to 128GB via Type-A port, FAT32/Ext4 only)

Video Performance

  • Hardware 4K decoding (4096×2304 max)
  • Playback capacity:
    • 1× 4K video | 3× 1080p | 8× 720p | 16× 480p | 20× 360p
  • Supported codecs: H.265, H.264, VP9, MPEG-4, AVS2 (up to 60fps, 100Mbps max bitrate)
  • Container support: MP4, MKV, AVI, MOV, FLV, RMVB

Pixel Handling

  • Max load: 650,000 pixels per Ethernet port
  • Resolution modes:
    • Standard: 2048×2048 pixels
    • Ultra-wide: 8192×2048 pixels

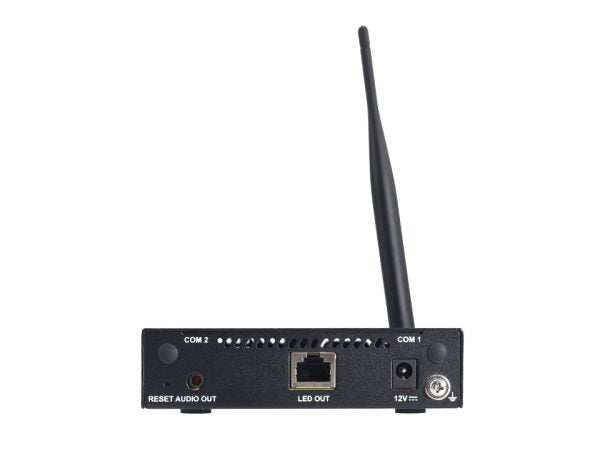

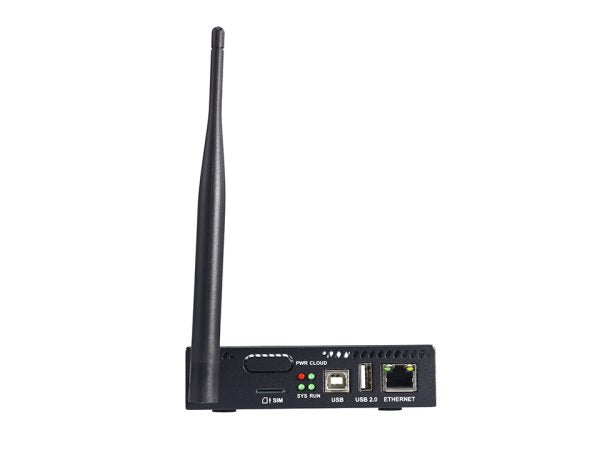

Connectivity

  • Output:
    • 1× Gigabit Ethernet (LED display output)
    • 1× 3.5mm stereo audio (fixed 48kHz sample rate)
  • Control:
    • 1× USB 2.0 Type-A (playback/upgrade)
    • 1× USB Type-B (direct computer control)
    • 1× Fast Ethernet port (LAN/WAN control)
  • Optional 4G module support (module not included)
  • Dual Wi-Fi: AP + Station modes simultaneously

Features

  • Multi-screen synchronization:
    • NTP
    • GPS (requires 4G module)
    • RF (requires RF module)
  • Sensor support: Light, temperature, humidity
  • Cloud-based remote management (VNNOX)

Physical Specs

  • Dimensions: 141.2 × 120.0 × 33.5 mm
  • Weight: 465.6g (net)
  • Power: DC 5-12V input, ≤15W consumption
  • Operating temp: -20°C to +60°C
  • Certifications: CE, FCC, IC, CQC

Additional

  • Android 10 OS + FPGA programming
  • IP20 rating (non-waterproof)
  • Accessories: Power adapter, Wi-Fi antenna, mounting racks, screws

Summary: The TB10 Plus is a compact Android-based media player designed for commercial LED displays. Its quad-core processor handles 4K content while driving up to 650K pixels. Key strengths include multi-source control (mobile/PC/tablet), flexible connectivity (Ethernet/4G/Wi-Fi), and cloud-based monitoring. Optional modules enable GPS/RF synchronization for large-scale deployments.
