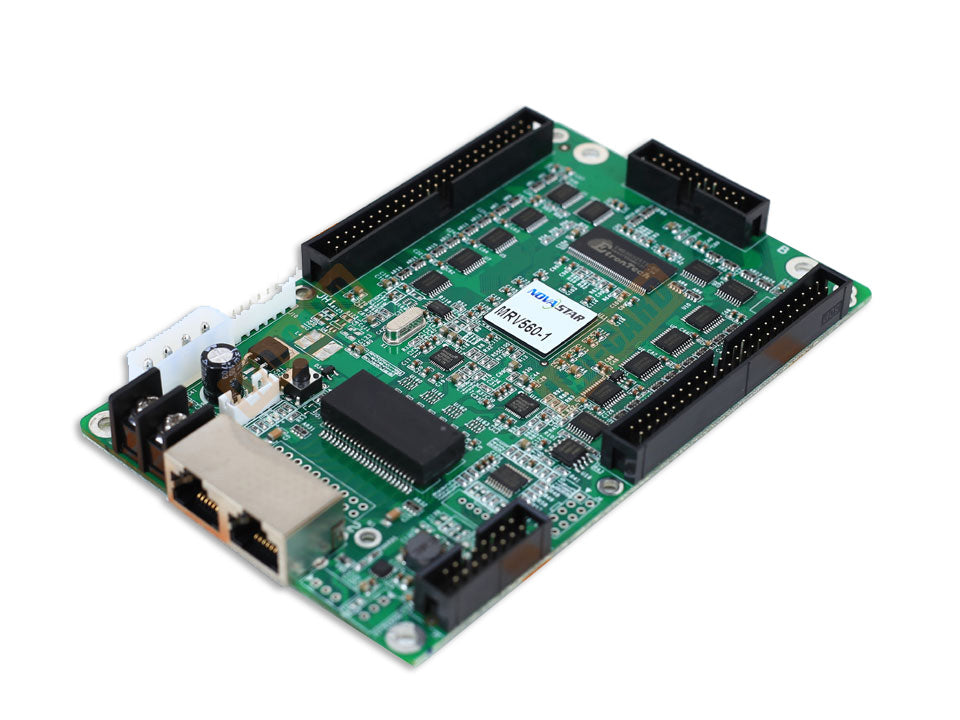

Novastar MRV560 MRV560-1 LED receiving card
1. Single card outputs 16-group of RGBR’data.
2. Single card outputs 20-group of RGB data.
3. Single card outputs 64-group of serial data.
4. MOM can store calibration coefficient and LED module information;
5. Single card supports resolution of 256*226.
6. Configuration file readback.
7. Temperature monitoring；
8. Ethernet cable communication status detection.
9. Power supply voltage detection.
10. High gray scale and high refresh rate;
11. Pixel-by-pixel brightness and chromaticity calibration.
12. Brightness and chromaticity calibration coefficients for each LED.
13. Pre-store picture setting.
14. Able to connect monitoring card to achieve comprehensive monitoring;
15. Comply with RoHS standard;
16. Comply with EU CE-EMC Class B standard.
Compatibility and ordering
1. Power supply: 3.3~5.0V DC 2. Temperature monitoring 3. Power supply voltage monitoring 4. Working status monitoring
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
