Novastar MRV416-N Receiver Card for LED display repair and maintenance
Novastar MRV416-N Receiver Card for LED display repair and maintenance
NOVASTAR

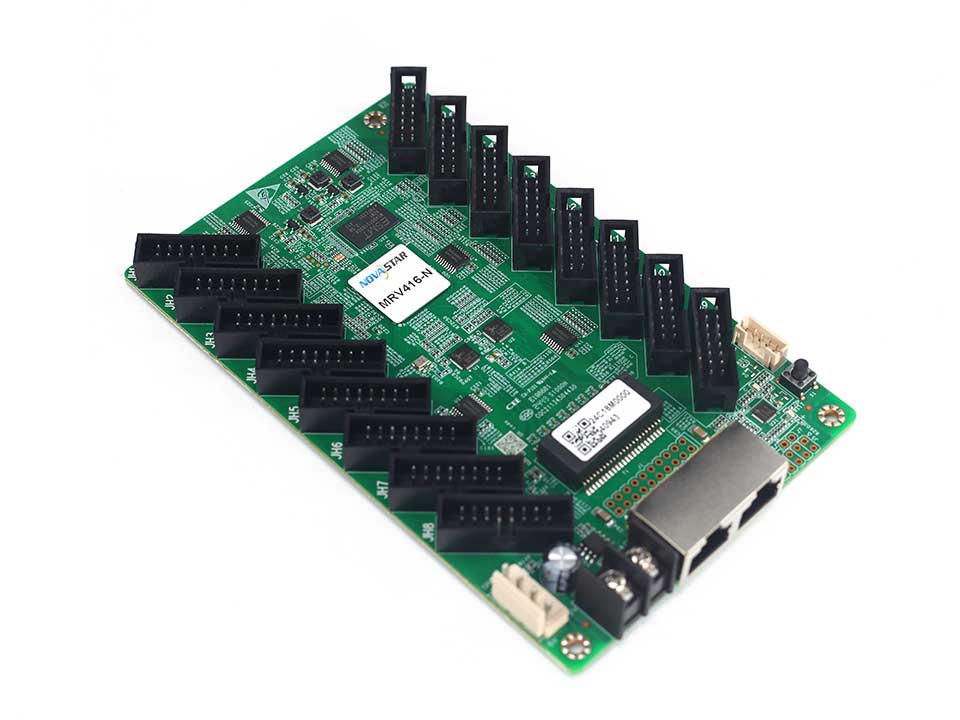

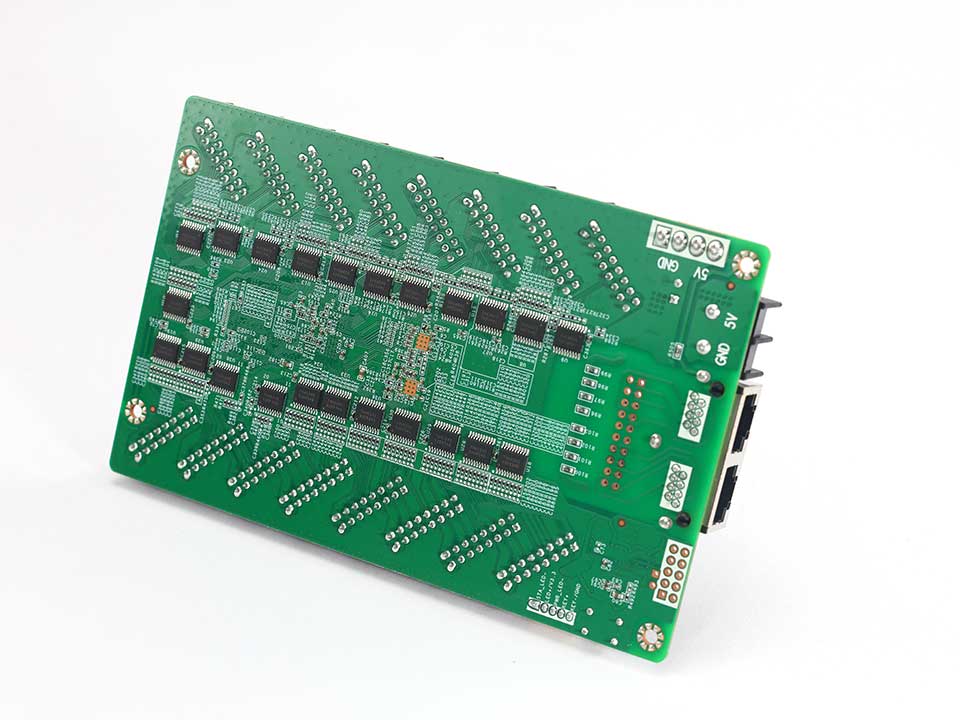

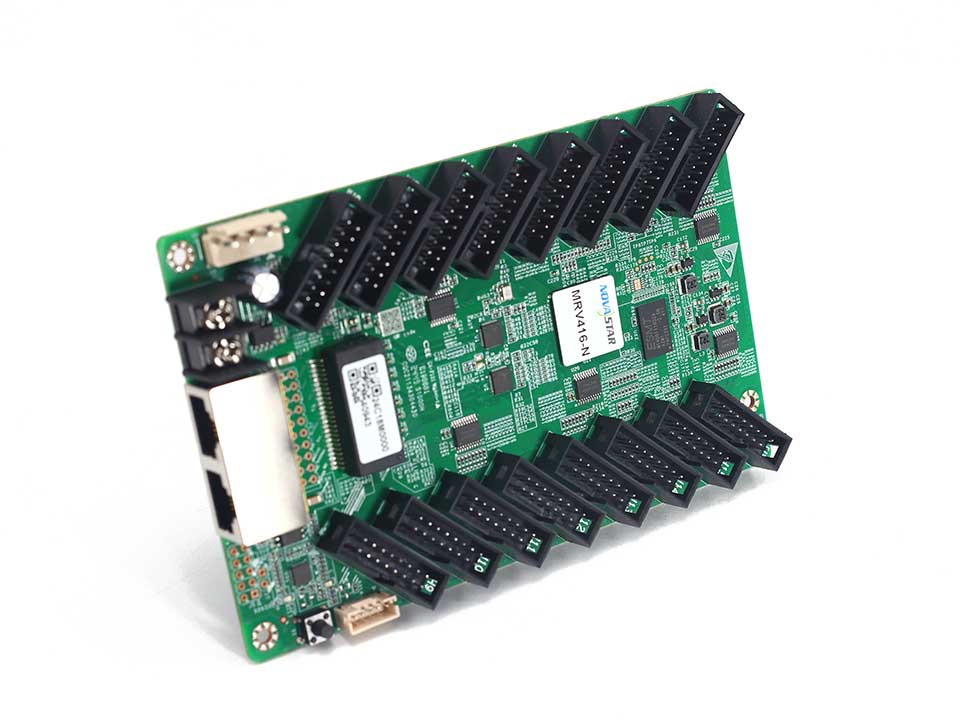

Novastar MRV416-N Receiver Card

Only 1 left
Low inventory - Hurry up!
$57.80

Ready to install and hit the road!

Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

Supports PWM driver ICs (512×512@60Hz) & common ICs (512×384@60Hz).
Features: 18bit+ color, brightness/chroma calibration, 3D, low latency, 90° rotation.
16×HUB75E connectors, 32 RGB data groups for versatile setups

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
16 standard HUB75E connectors
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 14.5mm x 91.5mm x 16.3mm
Weight: 104.5g
Passed: RoHS, EMC class A

Compatibility and ordering

Support 512*512@60Hz dots 18bit Color, 16*HUb75E 32RGB data group

Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
