Novastar MRV366 Receiving Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

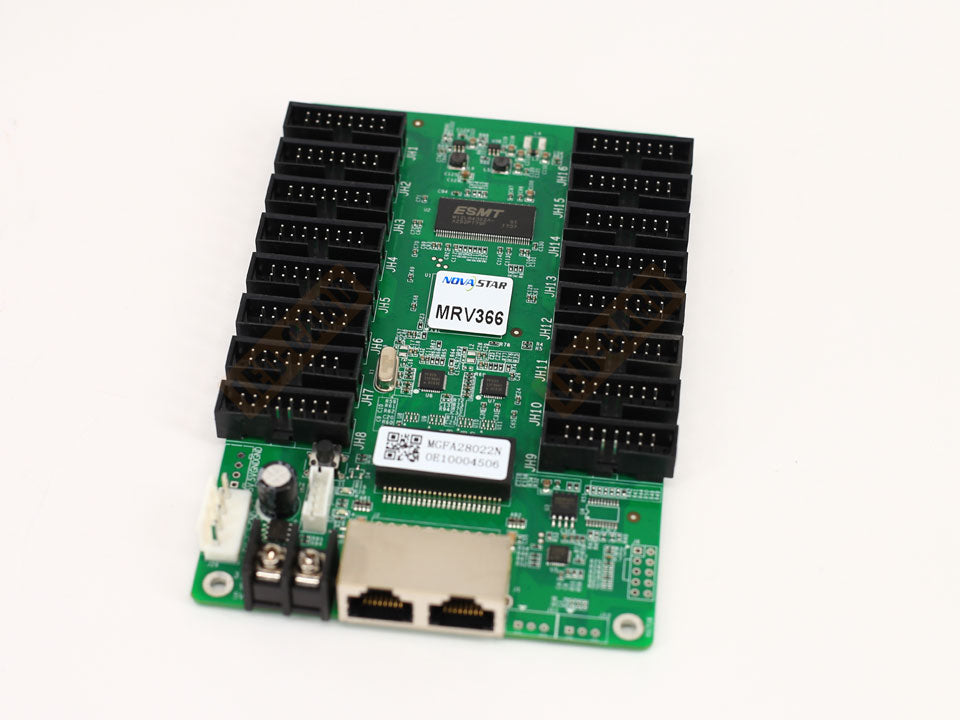

Novastar MRV366 Receiving Card
The MRV366 is a new receiving card developed by NovaStar. A single MRV366 loads
up to 512×256 pixels.
The MRV366 supports pixel level brightness and chroma calibration, which effectively
removes color difference, greatly improves display consistency of LED images, and
presents finer displays to users.
Software and hardware designs of the MRV366 have fully concerned users’
deployment, operating and maintenance scenarios, enabling easier deployment,
more stable operating and more efficient maintenance.
Hardware design:
Integrates 16 standard HUB75 connectors, which makes the HUB board
unnecessary.
Adopts the Gigabit Ethernet port, which can connect to the PC.
Software design:
Supports pixel level brightness and chroma calibration.
Supports setting of images pre-stored in the receiving card.
Supports status detection of temperature, voltage, Ethernet cable
communication and video source signals.
Supports the 5-pin LCD module.
Compatibility and ordering
Novastar MRV366 Receiving Card Max 512×256 pixels and 16 standard HUB75 connectors
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
