Novastar MRV208 LED Cascade Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

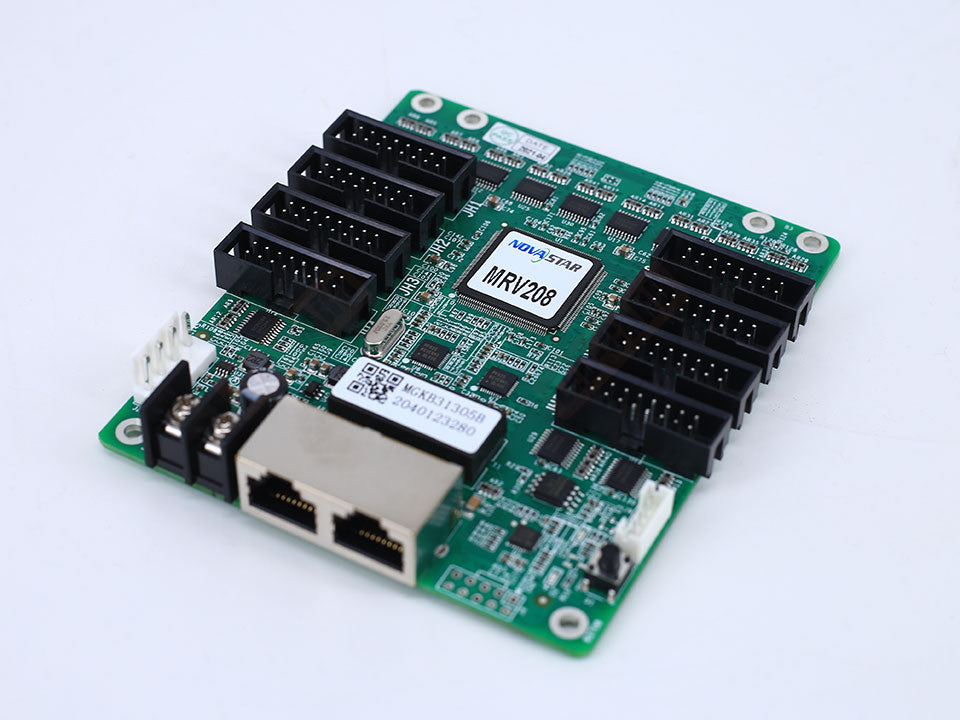

MRV208 is a universal receiving card launched by Novarstar. The maximum load of single card is 256*256 pixels . 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of MRV208 to communicate with 8 standard hub75E interfaces, which has high stability and supports up to 16 sets of RGB well data, Use of words in a variety of field environments.
Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 95.5mm x 109mm x 18.4mm
Weight: 72.5g
Passed: rohs, EMC class A
Compatibility and ordering
Input voltage: DC 3.3v-5.5v, Constant current: 0.5A Rated power: 2.5W Support: 256*256 pixels
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
