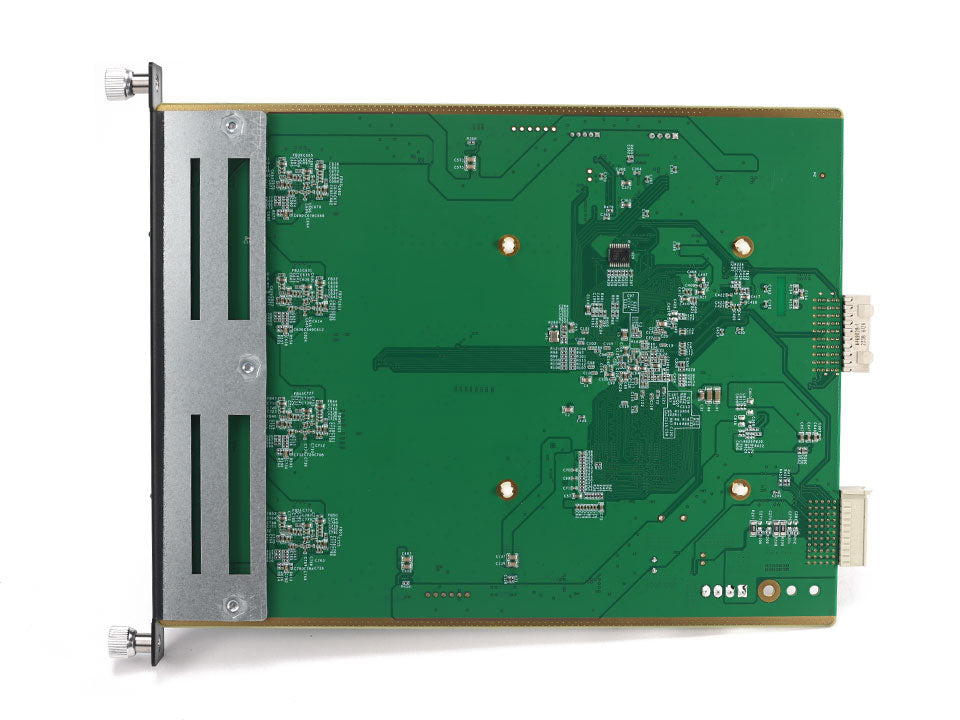

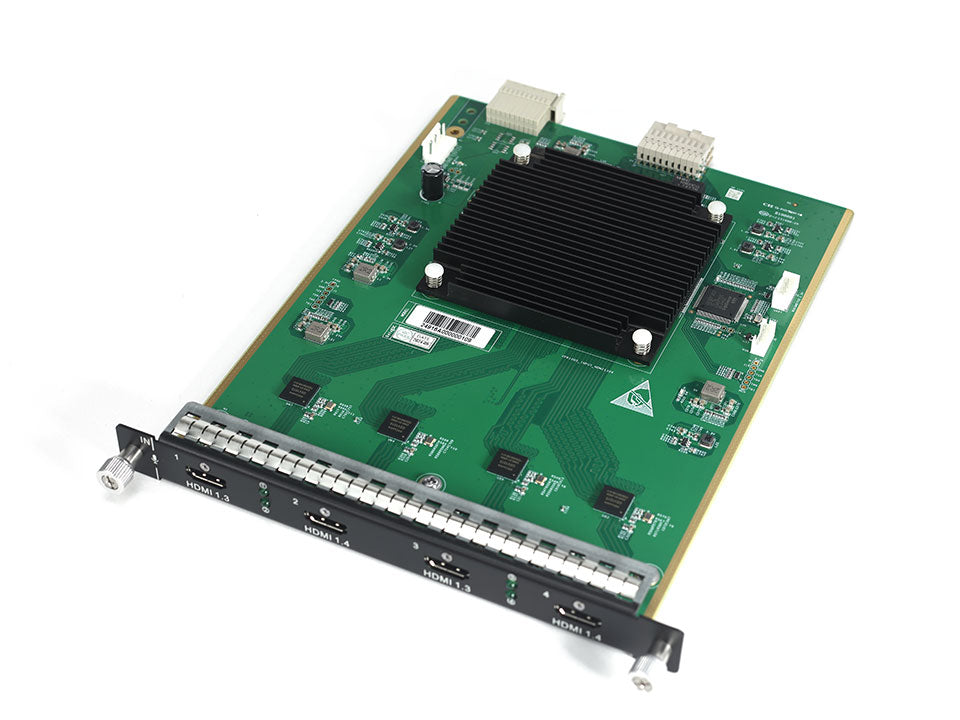

Novastar H_4xHDMI input card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
Novastar H_4xHDMI input card support for 10-bit input source, accompanied audio and 144Hz input
Does not support interlaced signal input.

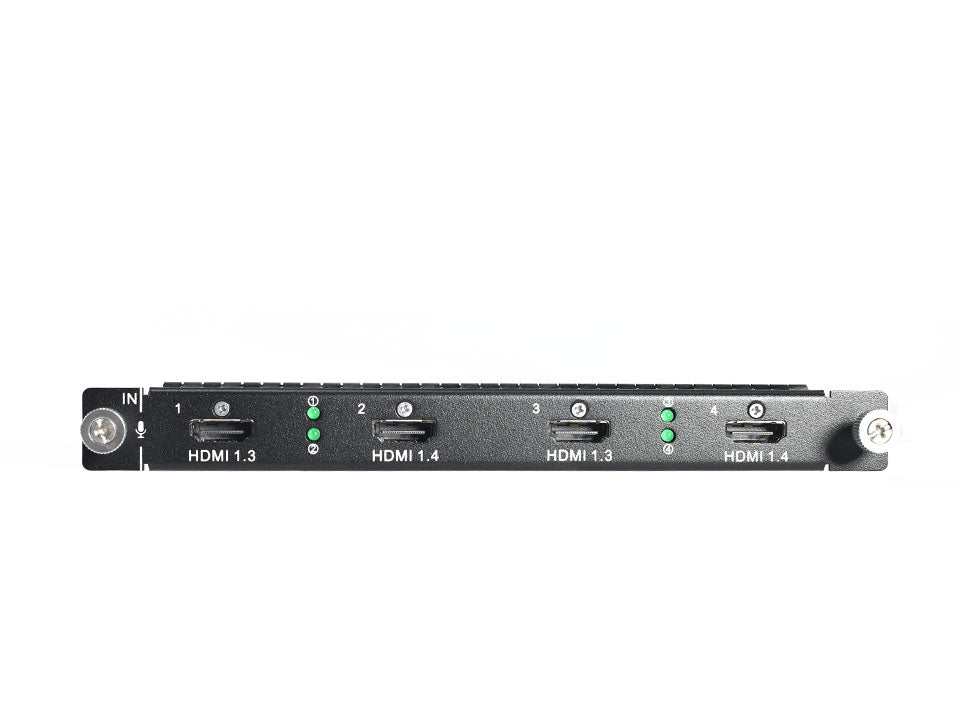

For HDMI 1.3 inputs:
Four connectors are all used for input.
Each connector supports the maximum resolution of 2048×1152@60Hz, and the minimum resolution of 800×600@60Hz.
Custom resolutions:
Max. width: 2560 pixels (2560×983@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
HDCP 1.4 compliant
For HDMI 1.4 inputs:
Two HDMI 1.4 connectors are used for input, but two HDMI 1.3 connectors are unavailable.
Each connector supports the maximum resolution of 3840×1080@60Hz.
Custom resolutions:
Max. width: 3840 pixels (3840×1202@60Hz)
Max. height: 3840 pixels (1092×3840@60Hz)
HDCP 1.4 compliant
Status LEDs:
On: The input source is accessed normally.
Off: No input source is accessed or the input source is abnormal.
Specifications:
Weight: 550 g
Dimensions: 193 mm × 247.12 mm × 21.15 mm
Power consumption: 9.3 W
