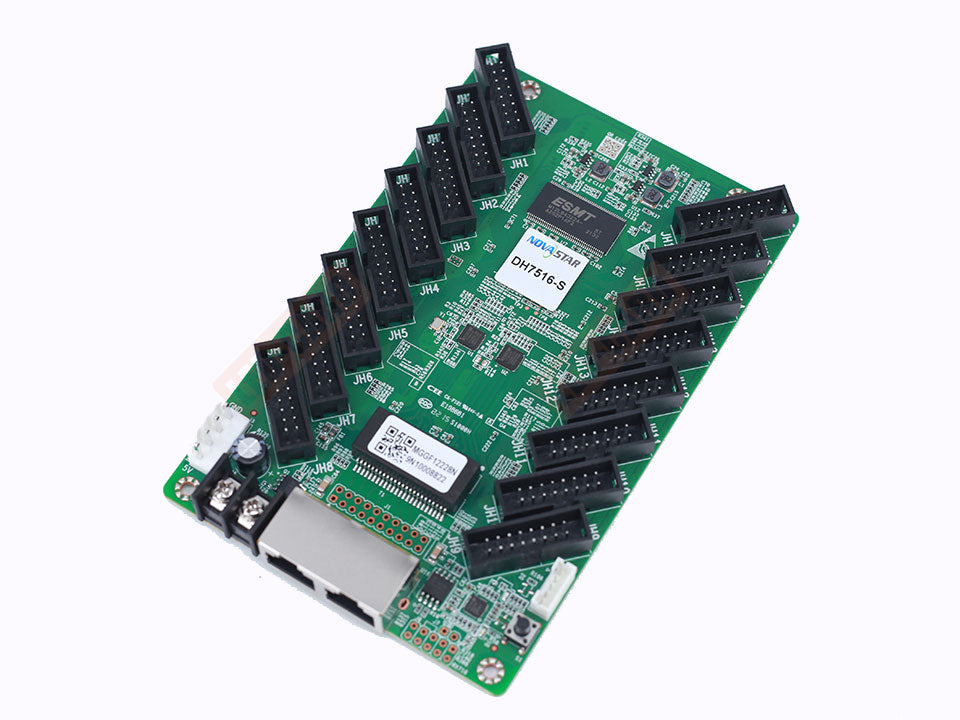

Novastar DH7516-S Receiver Card
DH7516 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*384 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of DH7516-N to communicate with 16 standard hub75E interfaces, which has high stability and supports up to 32 sets of RGB well data, Use of words in a variety of field environments， and with Brightness adjust.
Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 18.4mm x 145.7mm x 91.5mm
Weight: 102g
Compatibility and ordering
Maximum load of single card is 512*384 pixels;32 sets data; 16 standard hub75E interfaces
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
