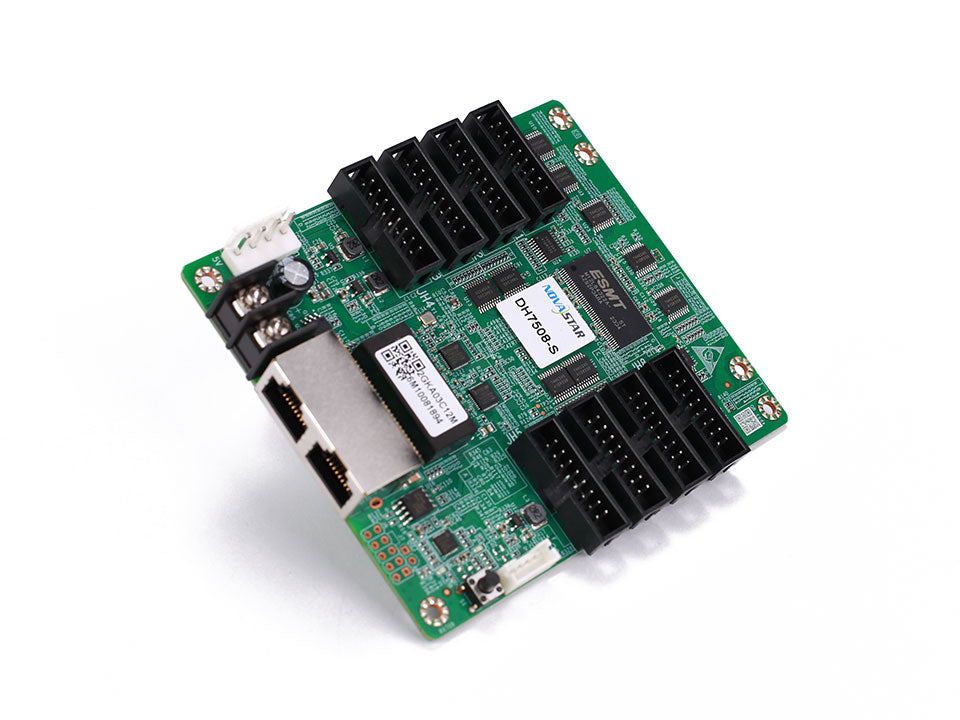

Novastar DH7508-S Receiver Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
DH7508-s is a universal receiving card launched by Novarstar. The maximum load of single card is 256*256 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of DH7508 to communicate with 8 standard hub75E interfaces, which has high stability and supports up to 16 sets of RGB well data, Use of words in a variety of field environments， and with Brightness adjust.
Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 18.4mm x 145.7mm x 91.5mm
Weight: 102g
Compatibility and ordering
Maximum load of single card is 256*256 pixels;16 sets data; 8 standard hub75E interfaces
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
