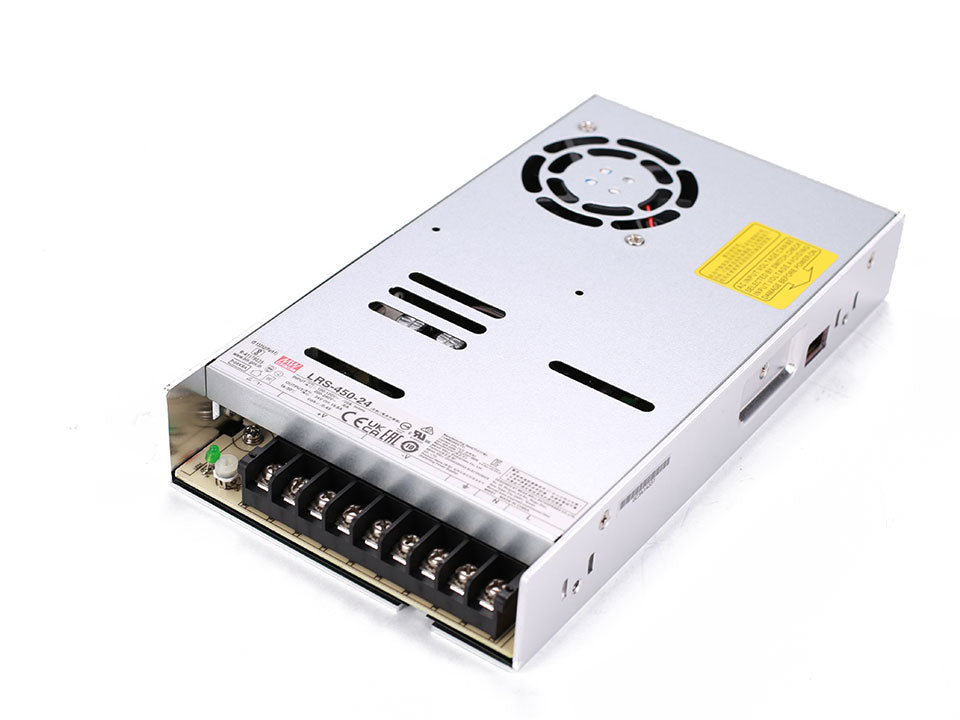

Meanwell LRS-450-24 Power Supply
Regular price
$136.00
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
Meanwell LRS-450-24 Power Supply is available from MR LED Screens for LED display service, repair and replacement projects in Australia.
Key specifications
- LRS-450-24 is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), and output voltage 24V.
- In addition to the high efficiency up to 92%, with the built-in long lite fan LRS- 450-24 can work under -20~+70C with full load.
- LRS- 450-24 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations.
- .AC input range selectable by switch
- . Withstand 300VAC surge input for 5 second
- .Protections: Short circuit/ Overload 1 Over voltage 1
- .Over temperature
Compatibility
Before ordering, confirm the AC input range, DC output voltage, current rating, physical dimensions, terminal layout and mounting points against the unit being replaced. Contact MR LED Screens if you would like help checking compatibility.
