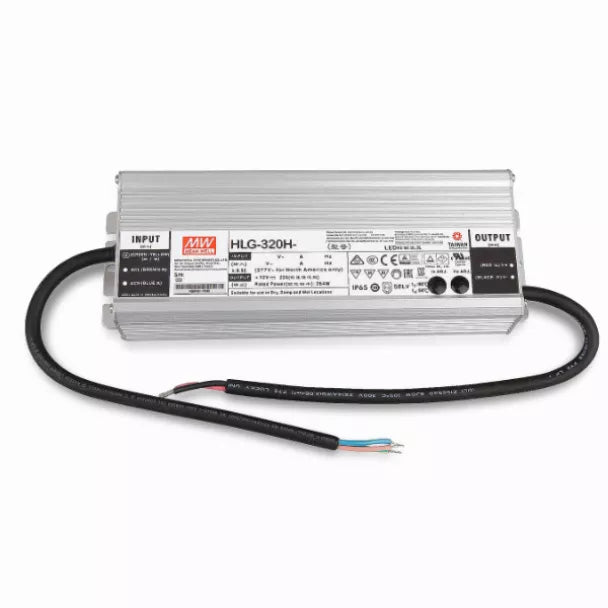

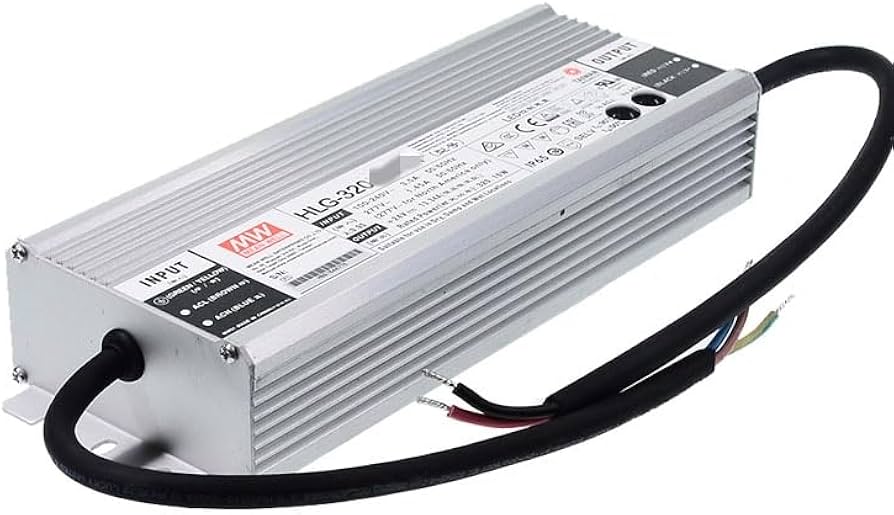

Meanwell HLG-320H-12A LED Power

Meanwell HLG-320H-12A LED Power

Features:
Constant Voltage + Constant Current mode output
Metal housing with class design
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer 3 in 1 dimming
Typical lifetime> 62000 hours
2 years warranty

HLG-320H-12 is a 320W AC/DC LED driver featuring the dual mode constant voltage and constantcurrent output. HLG-320H operates from 90 305VAC and offers models with different rated voltage ranging～between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series isable to operate for -40~ +90°C°Ccase temperature under free air convection. The design of metal housingand IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-320His equipped with various function options, such asdimming methodologies, so as to provide the optimal designflexibility for LED lighting system

Output:
Power: 12V 22A 264W
Voltage Tolerance: 3%
Setup, Rise Time: 500ms, 80ms/230VAC 2500MS,80ms/115VAC at Full load

Input:
Voltage Range: 90-305VAC / 127-431VDC
Frequency: 47-63HZ
Efficiency: 91%

Over load: 95-108% rated output power
Over Voltage: 13.5-18V
Working Temp: -40 to +90 degree
Working Humidity: 20-95% RH non-condensing

Authentication: UL TUV PSE CCC CB CE EMC IP67
Size: 252*90*43.8mm
Weight: 1.9KG
