Linsn TS08 Sending Box
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

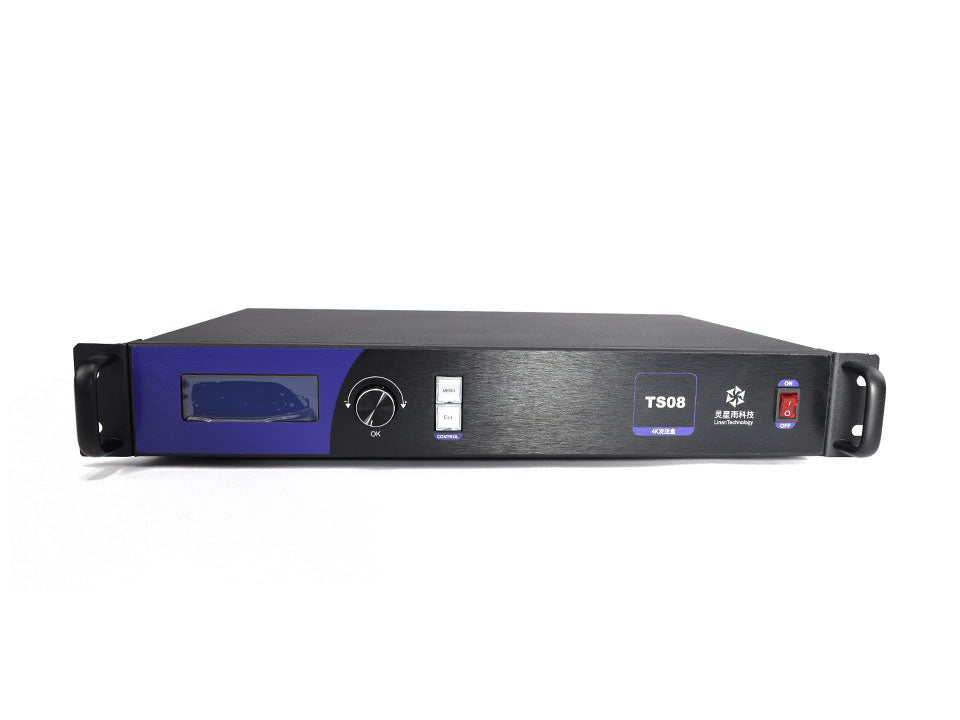

Linsn TS08 Sending Box is a 4K LED display control device independently developed by Linsn.
The maximum load capacity of a single device is 5.2 million pixels, supporting arbitrary resolution settings, with 8 gigabit network port outputs, and can support a maximum width of 15360 or a maximum of 8192 pixels, meeting customers’ needs for ultra long and ultra large screens.

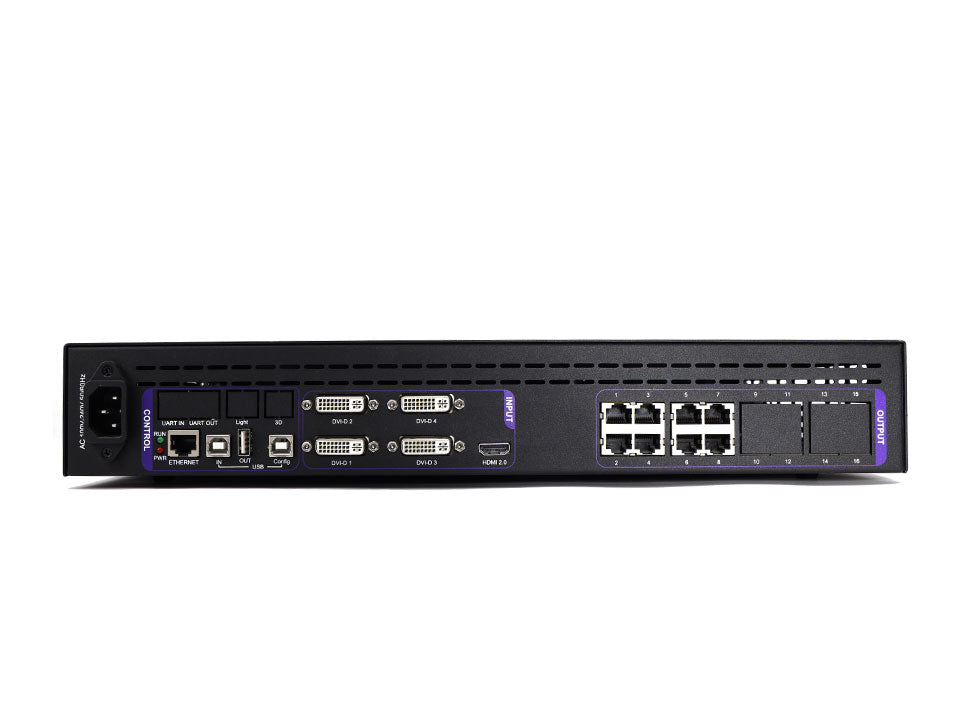

1. Supports complete digital input interfaces, including 1 HDMI channel ® 2.0, 4-channel DVI;
2. Supports 8 Gigabit Ethernet port outputs and 2 10G Ethernet port outputs;
3. The maximum load capacity of a single device is 5.2 million pixels, with a maximum width of 15360 or a maximum of 8192 pixels;
4. Support dual USB 2.0 communication interfaces, USB debugging and cascading;
5. Support Lingxingyu’s full range of receiving cards and multifunctional cards and other devices.
Input: HDMI2.0 *1 and DVI*1 （1920*1080@60HZ）
Output： Rj45*8 to receiver Card.
size: 482*315*66mm
weight: 4200G
