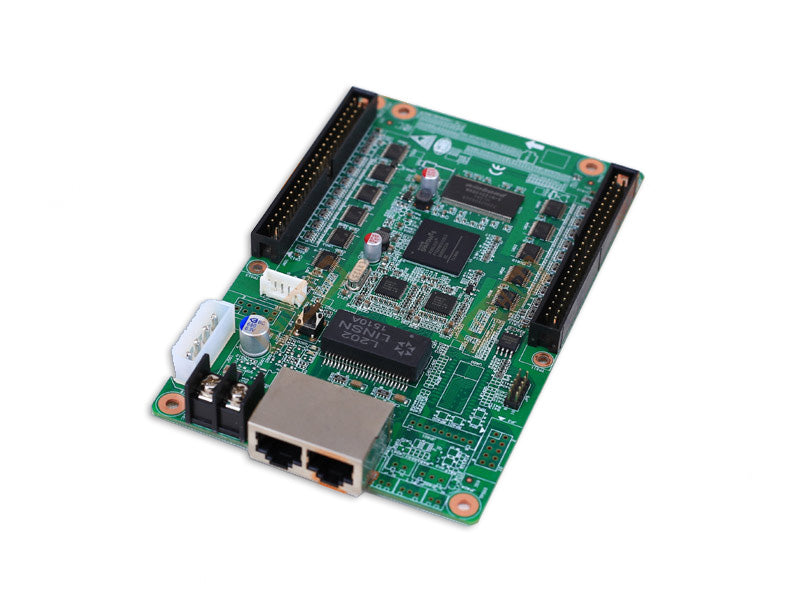

Linsn RV901T LED reception card

Name: Linsn RV901T LED reception card
Brand: LINSN
Price: 57.80 AUD
Availability: InStock

Only 1 left

Low inventory - Hurry up!

Regular price $57.80

Quantity

Ready to install and hit the road!

Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

Linsn RV901T LED reception cardDescription of Linsn RV901T

RV901is the upgrade product for RV801 and RV801D, fully compatible with RV801, supports all features of RV801.

Compared with the RV801 to add the following features

1. supports HDMI 12 bit color input (need the sending cards TS901)

2. a 18-bit signal processing, maximum 18-bit (260,000) gray for red, green and blue

3. single card maximum support 1024X256 pixels, 1024-level single point of color correction

4. supporting single card color space conversion

5. support RCG file read-back

6. support program copy

7. support hot backup for dual receiver card, used for very more performance LED screen

8. support fault detection supports pixel (IC support required)

9. supports the network cable error test

10. supports the ribbon cable fault detection

11. supports the cabinet door monitoring

12. two fan speed monitoring

13. three-way voltage monitoring, system, two-way external enclosure power supply

14. temperature monitor

15. humidity control (to be purchased separately and humidity sensor)

16. smoke monitoring (to be purchased separately smoke module)

17. Passed the EU CE-EMC standards

More Detail: Linsn RV901T Receving Card (PDF)

Compatibility and ordering

Description of Linsn RV901T RV901is the upgrade product for RV801 and RV801D, fully compatible with RV801, supports all features of RV801. Compared with the RV801 to add the following features 1. supports HDMI 12 bit color input (need the sending cards TS901)

Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
