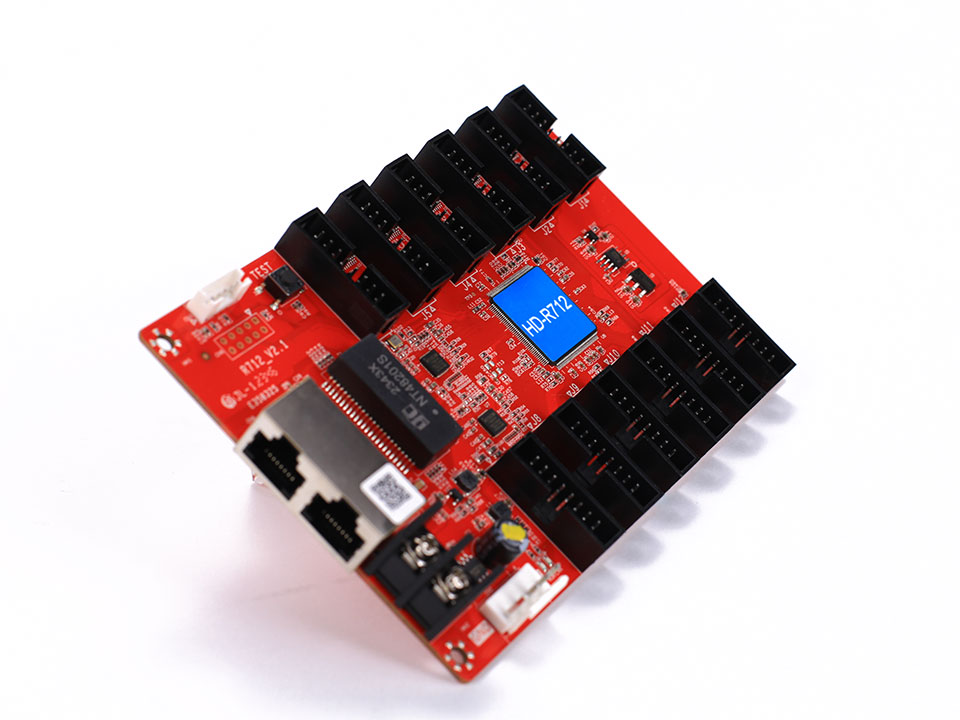

Huidu HD-R712 Receiving Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
HD-R712 is an LED display receiving card that supports both synchronous and asynchronous control system, noneed HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.
HD-R712 Features:
1. Integrated with 12 lines HUB75E port
2. Ultra loading capacity, conventional chip recommended 128*1024 pixels, PWM chip recommended 256*1024 pixels
3. Support data group exchange and data group offset setting
4. Support any scan module within static~1/128 scan
5. Support multi-card cascade, arbitrary order
6. Support data group exchange and data group offset setting
size: 142*91.2*1.5mm
weight: 95G
Compatibility and ordering
HD-R712 is an LED display receiving card that supports both synchronous and asynchronous control system, noneed HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.HD-R712 is an LED display receiving card that supports both synchronous and asynchronous control system, noneed HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
