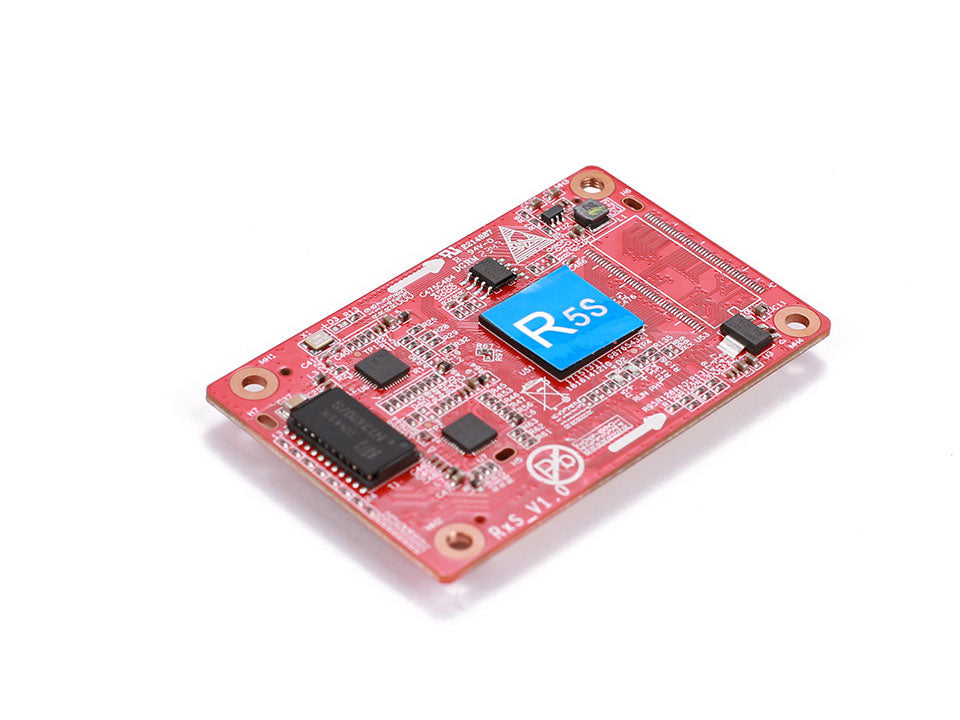

Huidu HD-R5S Receiving Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.
Huidu HD-R5S Description:
Sending card：Dual-mode sending box，Asynchronous sending card, Synchronous sending card,Video processor of VP series.
Module type：Supports transparent screen modules for all normal chips and mainstream PWM chips.
Scan Mode：Support any scanning method from static to 1/64, support extraction and empty point setting.
Communication：Gigabit Ethernet port
Control Range：Recommend：98,304 pixels (128*768)
Multiple cards cascaded： Receiving cards can be arbitrarily Sort, synchronized in nanoseconds Gray Scale Support 256~65536 (adjustable)
Smart setting： A few simple steps to complete the smart setting, and the display module can be matched with any wiring mode through the screen body routing setting.
Communication distance：Super category 5 , Super category 6 network cable is within 80 meters
Port： 120PIN*2
Input voltage： 4V-6V
Power： 5W
Size: 70*45*16mm
Weight: 80G
Compatibility and ordering
Huidu’s Mini Card with Communication：Gigabit Ethernet port Control Range：Recommend：98,304 pixels (128*768)
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
