Colorlight K8 LED receiving Card
Couldn't load pickup availability
Ready to install and hit the road!
Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

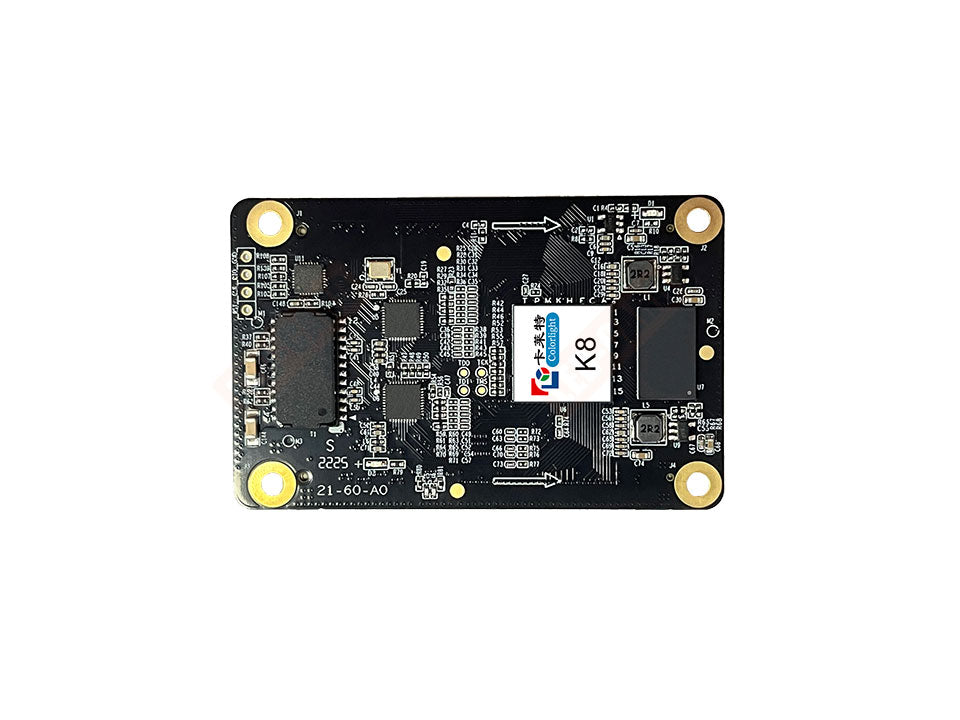

Colorlight K8 is a high-end receiving card developed by Colorlight. It supports up to 512X384 pixels and can load up to 32 groups of parallel data or 128groups of serial data. K8 adopts high-density connectors, which is dustproof and shockproof, resulting in its high stability and reliability. It not only has the functions of mainstream receiving cards, but also a series of practical and powerful features developed for high-end displays. K8 can be perfectly used in high-end rental as well as fine pitch LED screens, which brings value-added points for customers and enhances the added value of the products.
Hardware interface：High-density connectors
Ethernet port transmissionation Rate: 1Gb/S
Communication Distance: Distance Recommended : Cat5e cables<100m
Compatible with Transmission Equipment: Gigabit switch , Gigabit fiber switch
Voltage:DC3 8-5 . 5V, 0.5A
Rated Power: 2.5W
Body Static Resistance: 2KV
Size: 70*45*7.8mm
Weight: 29g/0.05lbs
Compatibility and ordering
Colorlight K8 is a high-end receiving card developed by Colorlight. It supports up to 512X384 pixels and can load up to 32 groups of parallel data or 128groups of serial data
Confirm the exact model, connector layout, firmware and cabinet compatibility before ordering. Contact MR LED Screens if you need help identifying a replacement receiver card.
