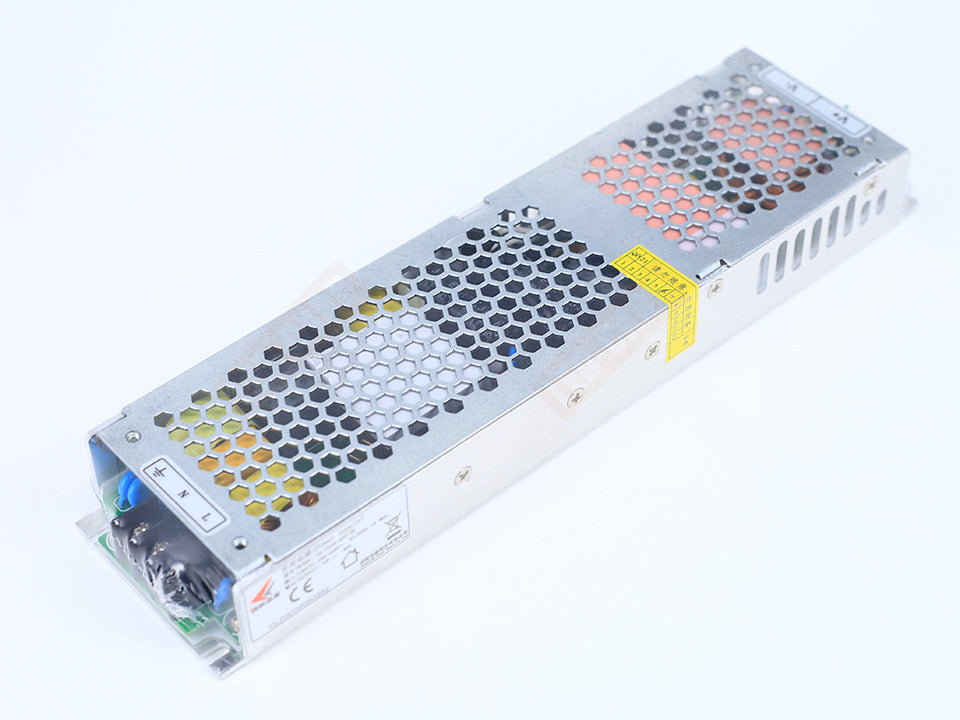

CL-PAS3-400-5B Power supply LED screen power supply
CL-PAS3-400-5B Power supply LED screen power supply
OEM

CL-PAS3-400-5B Power supply

SKU: CL-PAS3-400-5
Only 5 left
Low inventory - Hurry up!
$190.40

Ready to install and hit the road!

Reach out to us if needed, we can help with tracking, product information and other assistance with your project.

CL-PAS3-400-5B Power supply is available from MR LED Screens for LED display service, repair and replacement projects in Australia.

Key specifications

  • Model NO: CL-PAS3-400-5
  • Input Voltage Range: 90～264Vac
  • Input Frequency Range: 47～63HZ(Typ 50/60)
  • Max AC Current: <7.0A, 100Vac, full load
  • Inrush current: ≤90A, 240V, Full load, 25℃
  • PF >0.92(AC100~240Vac, full load)
  • Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)

Compatibility

Before ordering, confirm the AC input range, DC output voltage, current rating, physical dimensions, terminal layout and mounting points against the unit being replaced. Contact MR LED Screens if you would like help checking compatibility.
